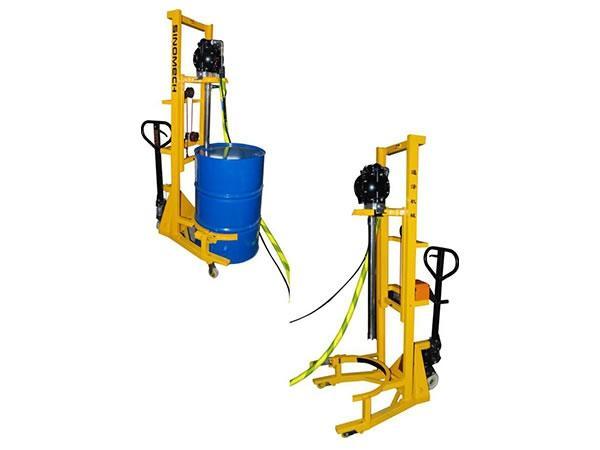

Vertical Automatic Adhesive Refilling System, AR1-200

This is a newly designed machine for delivering glue into the tanks of an automatic mixer.

Main Features
1. The AR1-200 vertical auto-refilling system (VAS) is designed for automatic flue refilling from large tanks directly into the tanks of a standard mixer.
2. The VAS is the latest in new product developed by Sinomech, and is comprised of 2 main parts: a normal auto-refilling system and a newly added trolley system.
3. The auto-refilling system is automatic, and the diaphragm pump refills glue from the large tanks, carrying it to the mixer tank.
4. The added trolley is designed for two purposes: carry and move large tanks and assist in changing the diaphragm pump unit from one tank to another.
5. The VAS, together with the SMI-40 standard mixer, is suitable for the continuous lamination of all 2 component solvent free glues.

Technical Parameters
Glue type: Two-component solvent free glue
Application: Continuous lamination production
Heating method: Electricity
Glue pump: Diaphragm pump
Tank capacity: 200kg
Working temperature: Maximum70°C, automatic control
Installed power: 2KW
Weight: About 200Kg, including the trolley
Machine dimensions (LxWxH): 700 x 1600 x 1900 (mm)
