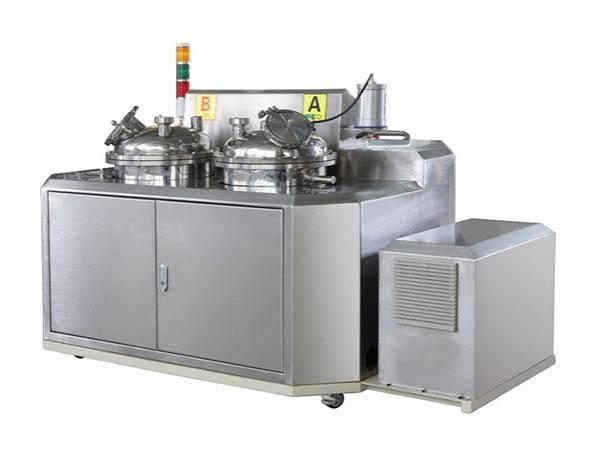

Single Component Adhesive Dispensing System (Twin-tank), SM4-90-2

This machine is specially designed to deliver glue to the coating unit of solvent free laminators.
Machine dimensions (L x W x H): 1550 x 1200 x 1400mm

Main Features
1. The twin tank gluer is specially designed for the dosing from 90 liter glue tanks directly onto the coating unit of the solvent free laminator, and is suitable for various glues under the mono component category.
2. The gluer looks like a standard mixer for 2 component adhesives, but the two sets of the heating and pumping systems work in turn and separately, with large volume tanks.

Technical Parameters:
Glue type: Mono-component solvent free glue
Application: Continuous lamination production
Heating method: Electricity heating with circular plate
Glue pump: Pneumatic diaphragm pump
Tank capacity: 90LX2
Working temperature: Maximum100℃, automatic control
Installed power: 5.5KW
Weight: About 600kg
Machine dimensions: 1550 x 1200 x 1400mm (L x W x H)

Applications
The twin tank gluer is suitable for large coating amount applications such as paper based lamination, especially when a supply of 200kg tanks is not available.
