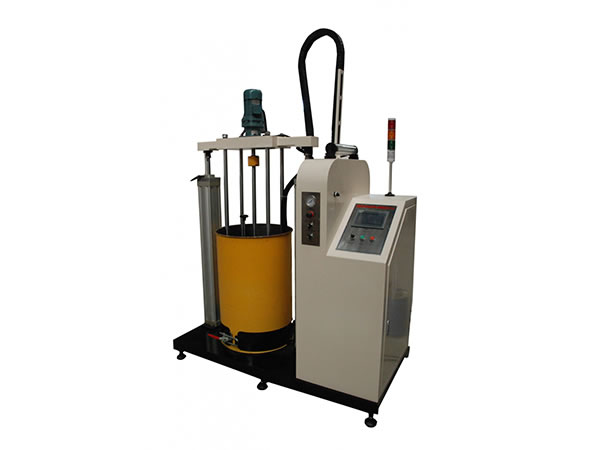

Single Component Adhesive Dispensing System, SM3-200

This is a unique machine for the direct supply of glue to the coating unit in a solvent free lamination machine. The heating temperature can be freely set and automatically controlled.

Features
1. This glue machine is specially designed for the dosing from large tanks directly onto the coating unit of a solvent free lamination machine, making it suitable for all mono-component PUR glues.
2. The glue in the large tank is to be heated to the working temperature with a circular heating plate and automatic temperature control. The glue level on the laminator is then detected with an ultrasonic, which automatically controls the gear pump.
3. The gluer is suitable for large coating amount applications, such as paper based lamination, when there is a supply of 20kg tanks.

Technical Parameters
Glue type: Mono-component PUR glue
Application: Continuous lamination
Tank capacity: 200kg
Maximum working temperature: 120℃
Heating method: Electric heating with circular plate
Glue pump: Gear pump
Installed power: 9KW
Weight: About 350kg
Machine dimensions: 1680 x 800 x 1920mm (L x W x H)

Application:
· Continuous lamination of large mono component glue, such as paper/plastic, paper/aluminum, and more.
· The constant positioning mechanism on the measuring roller achieves a single adjustment of the gap and long term fixing. This mechanism is a Sinomech patented product.
· The counter-weight rewind and roller pressing mechanism ensure a more accurate and intuitive setting and adjustment of the pressure.
· The automatic positioning mechanism of deviation correct scanning head allows users to automatically, quickly and accurately adjust the position of the scanning head.
· A detachable compound backpressure roller (optional) can improve the stability of wide or thick substrates.
· The management information system on the lamination machine (optional) can store production information and technical parameters.
