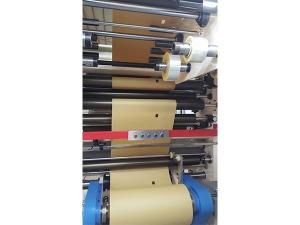

SLF1300AC Solventless Laminator

The SLF1300AC solventless laminating machine was developed based on the existing SLF1300A. It is a high performance, multi-function, and high speed laminator that can be customized according to customer needs.

Applications
1. Plastic/plastic lamination
2. Ion exchange membrane lamination
3. Paper/plastic lamination
4. Aluminum/plastic lamination
5. Window film (paper) coating and lamination

Technical Parameters:
Max mechanical speed: 400m/min
Max web width: 1300mm
Max unwinding diameter I: Ф1000 mm
Max unwinding diameter II: Ф1000 mm
Max unwinding diameter III: Ф450 mm (only for ion exchange membrane lamination)
Max unwinding/rewinding diameter of lining film: Ф400 mm
Max rewinding diameter: Ф1000 mm
