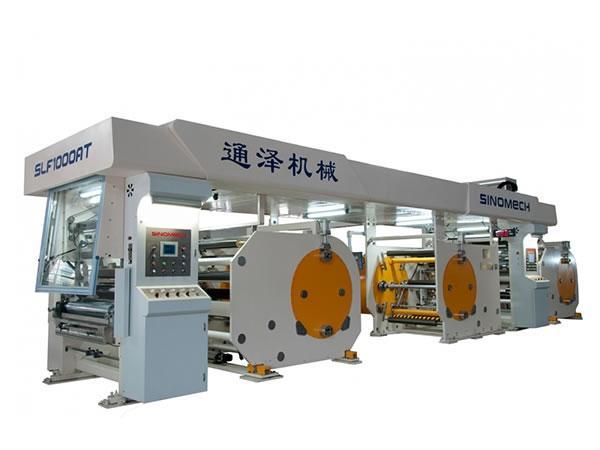

Solventless Laminator with Turret Winders

SLF-100/1300/1500 AT

Flying Splicing Mode
Maximum speed: 400m/minute

Technical Parameters:
Max mechanical speed: 400m/min
Max web width: 1050, 1300, 1500mm
Max unwinding diameter: 800/1000mm
Max rewinding diameter: 1000mm
Core ID: 3″or 6″
Overall dimension (L x W x H): 14000 x 4000 x 3500 mm
Applicable Industries
Large and medium sized flexible packaging companies

Application Scope:
A variety of films and aluminum laminated film

Features
1. Tension control mode: section dancing roller tension control, servo control
2. Coating unit control: servo motor
3. Three automatic splicing modes: semi-automatic full speed non-stop slicing, automatic full speed non-stop slicing, constant speed (deceleration) non-stop splicing
4. Digital servo control: unwinding, rewind coating, laminating, and other control points are controlled by an independent servo drive, which achieves the digital tension control and digital coating volume control
5. Easy operation: double touch screen (main control panel and coating control panel), multiple local control panels, transmembrane chain mechanism
6. Significant improvement in safety and sanitary conditions: protective shield for coating, dust cover for drag link mechanism
